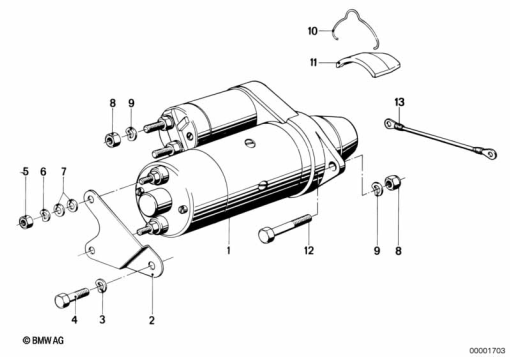

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 41 9 062 425 | STARTER | - | |
| 2 | 12 41 1 351 590 | SUPPORT | - | |
| 3 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZNAlternative for position 3 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 3 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 3 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 3 | - | ||
| 4 | 07 11 9 913 015 | HEX BOLT - M6X16-8.8-ZNS | - | |
07 11 9 904 357 | HEX BOLT - M6X16-8.8-ZNS3Alternative for position 4 | - | ||
| 5 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 01/85) | - | |
07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SIAlternative for position 5 | - | ||
| 6 | 07 11 9 932 098 | WAVE WASHER - B5 | - | |
| 7 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 7 | - | ||
| 8 | 12 41 1 255 797 | HEX NUT - M8 (to 09/80) | - | |
| 9 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 10 | 11 14 1 337 171 | WIRE-STRAP | - | |
| 11 | 11 14 1 255 793 | COVER | - | |
| 12 | 07 11 9 902 955 | HEX BOLT - M8X45-8.8-ZNS3 | - | |
| 13 | 61 12 1 244 475 | BATTERY CABLE NEGATIVE | - |
