R80 (2477) | Engine Electrics

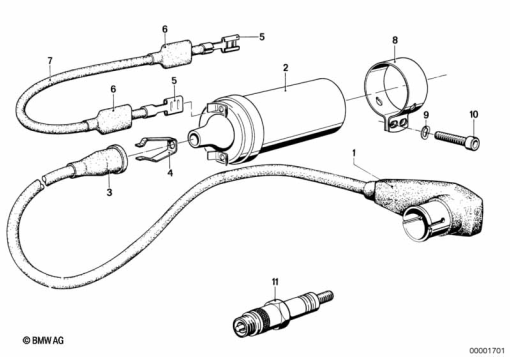

SPARK PLUG/IGNITION WIRE/IGNITION COIL
Diagram #12_0749 | 20 parts | 2 available in shop
100%
Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 12 1 243 182 | IGNITION WIRE | 1 | |
| 2 | 12 13 1 243 452 | IGNITION COIL - 6V (to 09/80) | 1 | |
| 2 | 12 13 1 243 452S | DUAL LEAD 12V COIL | 1 | |
| 2 | 12 13 1 243 452S1 | MOUNTING BRACKET | 1 | |
| 3 | 12 11 8 536 129 | PROTECTION CAP | 1 | |
| 4 | 12 12 8 536 120 | CABLE SLEEVE | 1 | |
| 5 | 61 13 8 061 769 | CABLE SOCKET FEMALE - B=7,5/L=19,2MM | 1 | |
| 6 | 61 13 8 061 761 | CAP FOR FLAT PLUG | 1 | |
| 7 | 12 13 1 354 147 | WIRE IGNITION COIL | 1 | |
| 8 | 12 13 1 243 391 | CLAMP | 1 | |
| 8 | 12 13 8 031 705 | CLAMP | 1 | |
| 9 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 9 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | 1 | |
| 9 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 9 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 9 | 07 11 9 904 496 | WAVE WASHER - B6-ZNS3 | 1 | |
| 10 | 07 11 9 920 148 | FILLISTER-HEAD SCREW - M6X12-8.8-ZNS | 1 | |
| 11 | 12 12 1 267 485NGK | SPARK PLUG | 1 | |
| 11 | 12 12 9 062 594 | SPARK PLUG | 1 | |
| 11 | 12 12 9 062 594 | SPARK PLUG - BOSCH W7DC | 1 |
