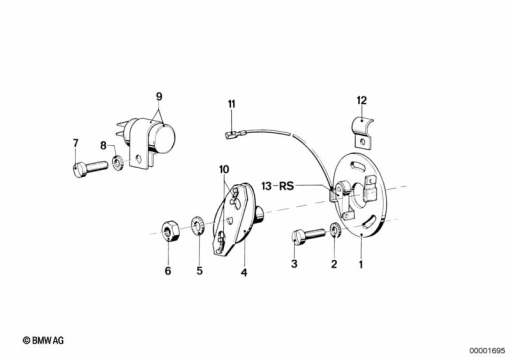

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 11 1 353 640 | CONTACTBREAKER PLATE (to 09/78) | - | |
| 2 | 07 11 9 932 030 | WAVE WASHER - B4 (to 09/78) | - | |
| 3 | 07 11 9 919 752 | FILLISTER-HEAD SCREW - M4X10-8.8 ZN (to 09/78) | - | |
12 11 1 361 964 | SCREW - M4X6 (to 09/78)Alternative for position 3 | - | ||
| 4 | 12 11 1 357 626 | CENTRIFUGAL GOVERNER (to 09/78) | - | |
| 5 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (to 09/78)Alternative for position 5 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 5 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS (to 09/78)Alternative for position 5 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3 (to 09/78)Alternative for position 5 | - | ||
| 6 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI (to 09/78) | - | |
| 7 | 07 11 9 919 381 | FILLISTER-HEAD SCREW - M4X12 (to 09/78) | - | |
| 8 | 07 11 9 932 030 | WAVE WASHER - B4 (to 09/78) | - | |
| 9 | 12 11 1 351 564N | CONDENSER "NORIS" 50/5-100RS | - | |
12 11 1 351 564 | CONDENSER (to 09/78)Alternative for position 9 | - | ||
| 10 | 12 11 1 357 627 | TENSION SPRING (to 09/78) | - | |
| 11 | 61 13 8 061 769 | CABLE SOCKET FEMALE - B=7,5/L=19,2MM (to 09/78) | - | |
| 12 | 12 11 1 353 345 | CLAMP - 1X4 (to 09/78) | - | |
| 13 | 12 11 1 243 555N | POINTS SET "NORIS" 50/5-100RS | - | |
12 11 1 243 556 | SET: CONTACT BREAKER (to 09/78)Alternative for position 13 | - |
