Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 11 9 906 415 | FILLISTER HEAD SCREW - M5X16 | - | |
| 2 | 07 11 9 932 098 | WAVE WASHER - B5 | - | |
| 3 | 12 32 1 244 409 | VOLTAGE REGULATOR | - | |
| 6 | 07 11 9 920 057 | FILLISTER-HEAD SCREW - M5X20-8.8 ZNS | - | |
| 7 | 12 31 1 244 063 | DIODE ASSY | - | |
| 10 | 12 33 1 357 639 | WIRING SET | - | |
| - | 12 31 1 244 062R | OMEGA DIODE BOARD | - | |
| 11 | 12 32 1 243 178 | WIRING SET | - | |
| 12 | 61 12 1 243 224 | WIRE CHARGING CURRENT | - | |
| - | ELA43178 | Diode Board Wire Set | - |

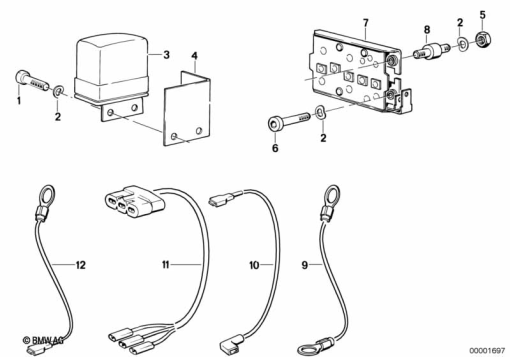

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
