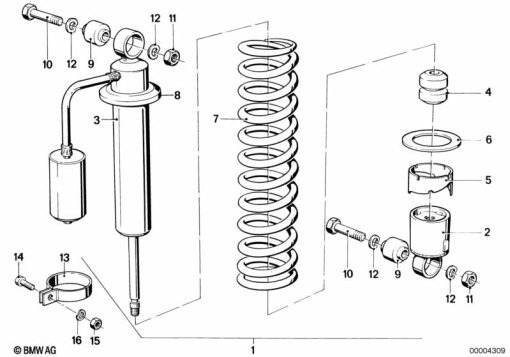

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 53 1 242 302 | SPRING STRUT, REAR | - | |
| 2 | 33 53 1 241 755 | SHOCK RETAINER - M 9 | - | |
| 3 | 33 53 1 242 303 | SHOCK ABSORBER, REAR - M 9 | - | |
| - | 33 53 1 241 755 | SHOCK RETAINER - M 9 | - | |
| 4 | 33 53 1 242 305 | ABSORBER | - | |
| 5 | 33 53 1 241 764 | RING | - | |
| 7 | 33 53 1 241 767 | COIL SPRING | - | |
| 8 | 33 53 1 241 763 | SPRING POCKET | - | |
| 9 | 33 53 1 242 278 | RUBBER MOUNTING | - | |
| 10 | 33 53 1 230 249 | HEX BOLT | - | |
| 11 | 07 11 9 901 301 | HEX NUT - M10X1 FLACH | - | |
07 12 9 922 436 | SELF-LOCKING HEX NUT - M10X1Alternative for position 11 | - | ||
| 12 | 07 11 9 904 463 | WAVE WASHER - B10-ZNS3 | - | |
| 13 | 33 53 1 242 719 | CLAMP | - | |
| 14 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV | - | |
| 15 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| - | 07 11 9 901 438.1 | M6X16 SS ALLEN BOLT | - | |
| 16 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 16 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 16 | - | ||
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 16 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 16 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
