R80G/S (2471) | Rear Axle & Suspension

SPRING STRUT, REAR

Diagram #33_0613 | 21 parts

100%

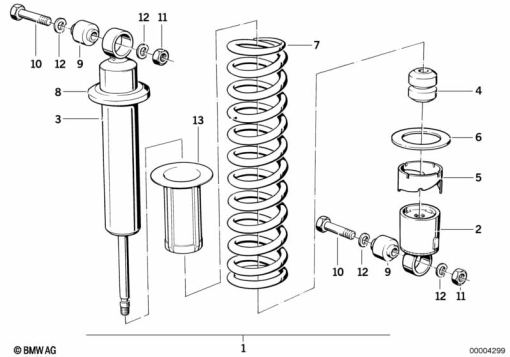

R80G/S (2471) SPRING STRUT, REAR exploded view parts diagram

Parts List (21)

#Part NumberDescriptionQty
1
33 53 2 301 743
SPRING STRUT, REAR-
2
33 53 1 241 755
SHOCK RETAINER - M 9 (to 09/83)-
33 53 9 061 031
SHOCK RETAINER - M10 (from 09/83)Alternative for position 2-
3
33 53 1 241 766
SHOCK ABSORBER - M 9 (to 09/83)-
-
33 53 1 241 755
SHOCK RETAINER - M 9 (to 09/83)-
3
33 53 2 301 742
SHOCK ABSORBER - M10 (from 09/83)-
-
33 53 9 061 031
SHOCK RETAINER - M10 (from 09/83)-
4
33 53 1 242 305
ABSORBER-
5
33 53 1 241 764
RING (to 09/83)-
33 53 1 450 854
RING (from 09/83)Alternative for position 5-
6
33 53 1 241 762
SPRING POCKET (to 09/83)-
33 53 1 451 990
SPRING PAD UPPER (from 09/83)Alternative for position 6-
7
33 53 1 241 767
COIL SPRING-
9
33 53 1 242 278
RUBBER MOUNTING-
10
33 53 1 230 249
HEX BOLT-
11
07 11 9 900 079
HEX NUT - M10X1 (to 12/92)-
07 11 9 901 301
HEX NUT - M10X1 FLACHAlternative for position 11-
07 12 9 922 436
SELF-LOCKING HEX NUT - M10X1Alternative for position 11-
12
07 11 9 932 122
WAVE WASHER - B10-ZNS (to 12/92)-
07 11 9 904 463
WAVE WASHER - B10-ZNS3Alternative for position 12-
13
33 53 1 451 989
PROTECTION TUBE-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
