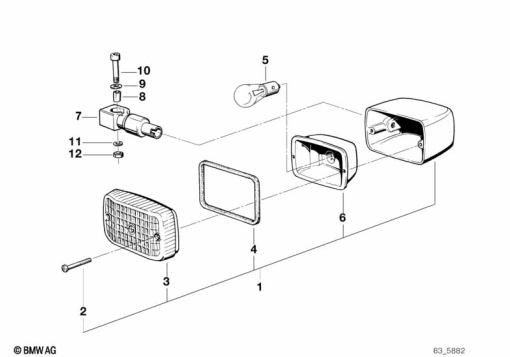

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 23 1 243 442 | TURN INDICATOR - OLSA | - | |
| 2 | 07 11 9 907 643 | FILLISTER HEAD SCREW - M3,5X25 | - | |
| 3 | 63 23 1 243 445 | LENS - OLSA | - | |
| 4 | 63 23 1 243 446 | GASKET - OLSA | - | |
| 5 | 63 21 6 926 920 | LONGLIFE BULB - P21W/12V/21W | - | |
63 21 7 160 790 | LONGLIFE BULBAlternative for position 5 | - | ||
63 21 7 160 790 | LONGLIFE BULBAlternative for position 5 | - | ||
| 6 | 63 23 1 243 443 | REFLECTOR - OLSA | - | |
| 7 | 63 23 1 244 020 | BRACKET REAR | - | |
| 8 | 63 23 1 244 135 | BUSH | - | |
| 9 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 9 | - | ||
| 12 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
