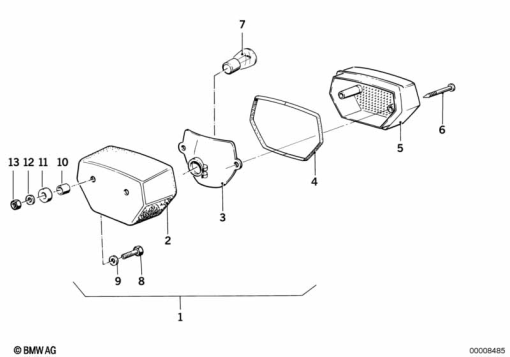

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 21 1 244 025 | REAR LIGHT | - | |
| 2 | 63 21 1 244 081 | HOUSING | - | |
| 3 | 63 21 1 244 025 | REAR LIGHT | - | |
| 4 | 63 21 1 244 080 | GASKET | - | |
| 5 | 63 21 1 244 025 | REAR LIGHT | - | |
| 6 | 63 21 1 244 083 | SCREW | - | |
| 7 | 07 11 9 905 511 | LONGLIFE BULB - 12V 21/5W | - | |
| 8 | 07 11 9 904 357 | HEX BOLT - M6X16-8.8-ZNS3 | - | |
| 9 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 12 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
| 13 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 13 | - | ||
| - | 07 11 9 936 426 | FLAT WASHER | - | |
| 13 | 07 12 9 905 817 | HEX NUT | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
