R80G/S (2471) | Front Suspension

RISER PIPE/ABSORBER

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #31_0317 | 23 parts

100%

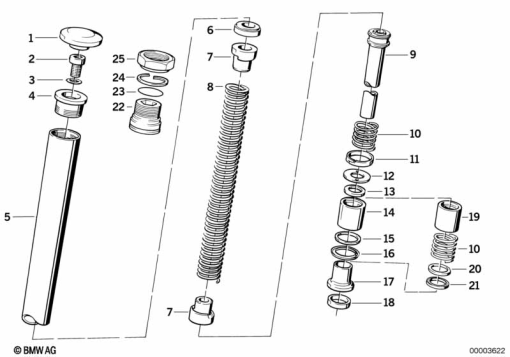

R80G/S (2471) RISER PIPE/ABSORBER exploded view parts diagram

Parts List (23)

#	Part Number	Description	Qty
1	31 42 1 238 909	0.02	-
2	72 11 8 108 712	FILLISTER-HEAD SCREW - M10X12	-
3	07 11 9 963 073	GASKET RING - A10X13.5-AL	-
4	31 42 1 241 661	SPRING RETAINER - M30X1.5	-
5	31 42 1 241 655	STANCHION	-
7	31 42 2 301 724	GUIDE SUPPORT	-
8	31 42 1 241 657	COMPRESSION SPRING	-
9	31 42 1 241 654	ABSORBER	-
10	31 42 1 241 665	COMPRESSION SPRING (to 11/82)	-
	31 42 1 241 665	COMPRESSION SPRING (from 11/82)Alternative for position 10	-
11	31 42 1 241 649	GUIDE RING	-
12	31 42 1 237 214	WASHER	-
13	31 42 1 242 645	VALVE WASHER	-
14	31 42 2 301 885	VALVE HOUSING (to 11/82)	-
15	07 11 9 932 657	SHIM - 22X30X0.2 (to 11/82)	-
	07 11 9 932 659	SHIM - 22X30X0.3 (to 11/82)Alternative for position 15	-
	07 11 9 932 660	SHIM - 22X30X0.5 (to 11/82)Alternative for position 15	-
16	31 42 1 242 646	LOCK RING - J30X1.2 (to 11/82)	-
17	31 42 2 301 015	SUPPORT FOR DAMPER PIPE	-
18	31 42 1 241 737	INTERMEDIATE RING (from 11/82)	-
19	31 42 2 301 885	VALVE HOUSING (from 11/82)	-
20	31 42 2 301 886	RING (from 11/82)	-
21	07 11 9 934 645	LOCK RING - 30X1,2 (from 11/82)	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
