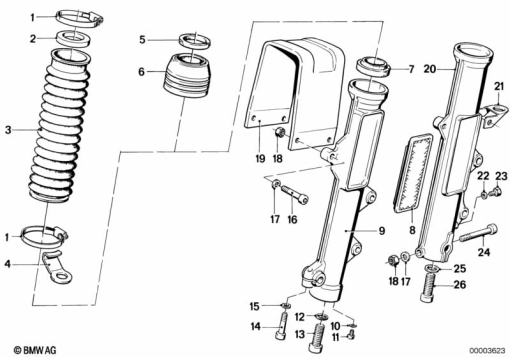

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 12 9 952 121 | HOSE CLAMP - L=47-54MM | - | |
| 2 | 31 42 1 241 669 | RING | - | |
| 3 | 31 42 1 241 666 | RUBBER BOOT | - | |
| 4 | 34 32 1 242 268 | HOSE CLAMP | - | |
| 7 | 31 42 1 232 655 | SHAFT SEAL - 36X46X7.3 | - | |
| 8 | 63 14 1 244 529 | SIDE REFLECTOR, YELLOW, FRONT | - | |
| 9 | 31 42 1 241 663 | INNER TUBE, SILVER, LEFT | - | |
31 42 2 302 403 | INNER TUBE, BLACK, LEFTAlternative for position 9 | - | ||
31 42 2 302 404 | INNER TUBE, BLACK, RIGHTAlternative for position 9 | - | ||
| 10 | 07 11 9 963 010 | GASKET RING - A5X7.5-AL | - | |
| 11 | 12 31 2 322 411 | FILLISTER-HEAD SCREW - M5X8 | - | |
| 12 | 07 11 9 963 151 | GASKET RING - A12X17-CU | - | |
| 13 | 07 11 9 901 116 | FILLISTER-HEAD SCREW - M12X40-8.8-ZNS | - | |
| 14 | 07 11 9 901 027 | FILLISTER-HEAD SCREW - M8X35 ZNS | - | |
| 15 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 16 | 07 11 9 901 027 | FILLISTER-HEAD SCREW - M8X35 ZNS | - | |
| 17 | 07 11 9 931 684 | WASHER - 8,4 140HV | - | |
| 18 | 07 12 9 906 196 | SELF-LOCKING HEX NUT - M8-8-ZNNI SI | - | |
| 19 | 31 42 1 241 662 | 0.72 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
