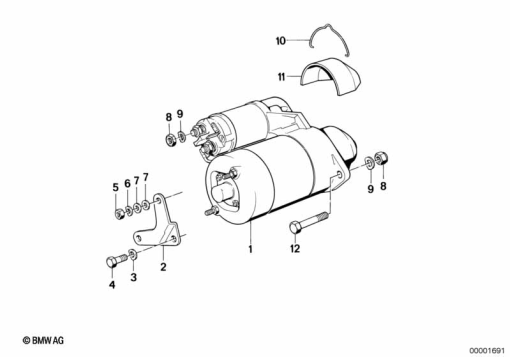

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 12 41 1 351 590 | SUPPORT | - | |
| 3 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 3 | - | ||
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZNAlternative for position 3 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 3 | - | ||
| 4 | 07 11 9 913 466 | HEX BOLT - M6X16-8.8 ZN | - | |
| 5 | 07 11 9 922 856 | HEX NUT - M8-ZNS | - | |
| 6 | 07 11 9 932 098 | WAVE WASHER - B5 | - | |
| 7 | 07 11 9 931 029 | WASHER - A5,3-140 HV-ZNS (to 07/87) | - | |
| 8 | 07 12 9 964 675 | SELF-LOCKING HEX NUT - M8-8-ZNS | - | |
| 9 | 07 11 9 932 095 | WAVE WASHER - B8 (to 07/87) | - | |
07 11 9 932 095.1 | M8 SPRING WASHER B8 V2AAlternative for position 9 | - | ||
| 10 | 11 14 1 337 171 | WIRE-STRAP | - | |
| 11 | 11 14 1 255 793 | COVER | - | |
| 12 | 07 11 9 912 506 | HEX BOLT - M8X45 | - |
