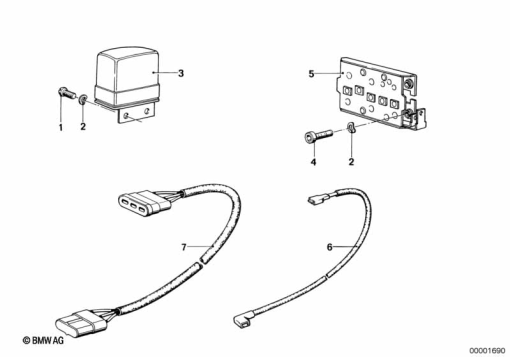

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 11 9 919 613 | FILLISTER-HEAD SCREW - M5X12 | - | |
07 11 9 919 613 | SOCKET HEAD CAP SCREWAlternative for position 1 | - | ||
| 2 | 07 11 9 932 098 | WAVE WASHER - B5 | - | |
| 3 | 12 32 1 244 409 | VOLTAGE REGULATOR | - | |
12 32 1 244 737 | VOLTAGE REGULATORAlternative for position 3 | - | ||
| 4 | 07 11 9 920 057 | FILLISTER-HEAD SCREW - M5X20-8.8 ZNS | - | |
| 5 | 12 31 1 244 062R | OMEGA DIODE BOARD | - | |
12 31 1 244 063 | DIODE ASSYAlternative for position 5 | - | ||
| 6 | 12 33 1 357 639 | WIRING SET | - | |
| 7 | 12 32 1 243 178 | WIRING SET | - | |
ELA43178 | Diode Board Wire SetAlternative for position 7 | - |
