R80G/S (2471) | Electrical System
HORN/RELAY/VARIOUS SWITCHES

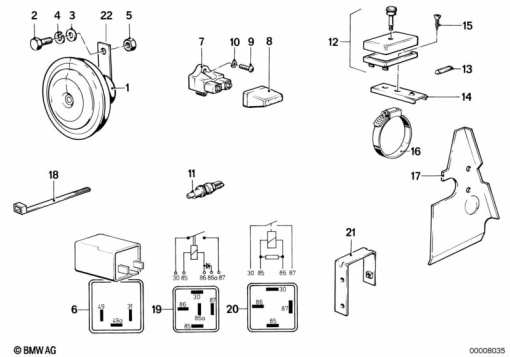

Diagram #61_0196 | 27 parts | 1 available in shop
100%
Parts List (27)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 33 2 306 791 | HORN - 335HZ | 1 | |
| 2 | 07 11 9 902 900 | HEX BOLT - M8X16-8.8-ZNS3 | 1 | |
| 3 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | 1 | |
| 4 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | 1 | |
| 5 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 12/92) | 1 | |
| 5 | 07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SI | 1 | |
| 6 | 61 31 1 244 392 | HAZARD WARNING RELAY | 1 | |
| 7 | 61 31 1 353 684 | STOP LIGHT SWITCH | 1 | |
| 7 | 61 31 1 353 684SC | 3.5X6MM SLOTTED SCREW FOR REAR BRAKE LIGHT SWITCH | 1 | |
| 8 | 61 31 1 351 249 | 0.01 | 1 | |
| 9 | 07 11 9 906 734 | FILLISTER HEAD SELF-TAPPING SCREW - ST3,9X16 | 1 | |
| 10 | 07 11 9 932 033 | WAVE WASHER - B4 | 1 | |
| 11 | 61 31 1 244 070 | STOP LIGHT SWITCH | 1 | |
| 12 | 61 13 1 244 038 | FUSE BOX | 1 | |
| 13 | 61 13 8 760 138 | FUSE - 8A | 1 | |
| 14 | 61 13 1 244 132 | HOLDER | 1 | |
| 14 | 61 13 1 244 301 | HOLDER | 1 | |
| 15 | 07 11 9 907 946 | FILLISTER HEAD SELF-TAPPING SCREW - ST4,2X13 | 1 | |
| 16 | 07 12 9 952 119 | HOSE CLAMP - L42-48 | 1 | |
| 17 | 61 13 1 244 225 | COVER | 1 | |
| 18 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 | |
| 18 | 61 13 1 377 134 | CABLE TIE - L=292MM/B=4,8MM | 1 | |
| 19 | 61 36 1 389 105 | RELAY IN ZINC YELLOW | 1 | |
| 20 | 61 31 1 373 585 | RELAY - YELLOW | 1 | |
| 20 | 61 31 1 373 588 | MINI-RELAY | 1 | |
| 21 | 61 31 1 244 086 | HOLDER | 1 | |
| 22 | 61 33 2 306 792 | SHACKLE | 1 |
