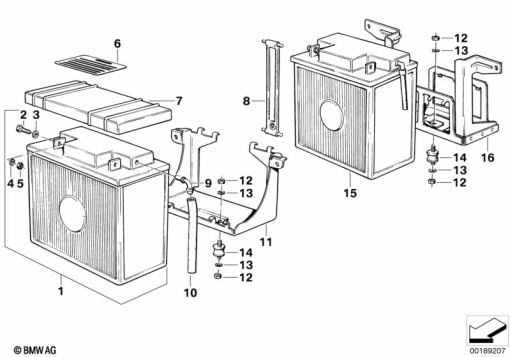

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 21 0 403 224 | BATTERY | - | |
61 21 2 346 800 | BATTERY, MAINTENANCE-FREE - 12V 19AHAlternative for position 1 | - | ||
| 2 | 61 21 1 459 655 | HEX BOLT - M6X20 | - | |
| 3 | 61 21 1 459 657 | WASHER - A6,4 | - | |
| 4 | 61 21 7 670 327 | SPRING WASHER - B6 | - | |
| 5 | 61 21 1 459 656 | HEX NUT - M6 | - | |
| 6 | 51 14 1 873 247 | LABEL "BATTERY" | - | |
| 7 | 61 21 1 459 099 | COVERING CAP - + POL | - | |
| 8 | 61 21 1 243 562 | TENSION STRAP | - | |
| 9 | 61 21 1 459 247 | HOSE CONNECTOR | - | |
| 10 | 61 21 2 306 299 | HOSE - 1000 MM | - | |
| 11 | 61 21 1 243 302 | BATTERY HOLD DOWN | - | |
| 12 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 13 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 13 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 13 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 13 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 13 | - | ||
| 14 | 61 21 1 233 028 | RUBBER MOUNTING | - | |
FRA33028 | RUB. MNT. BAT BOX 8-15-8MMAlternative for position 14 | - | ||
| 15 | 61 21 1 244 252 | EMPTY BATTERY - 9AH | - | |
| 16 | 61 21 1 244 253 | BATTERY HOLD DOWN - 9AH | - |
