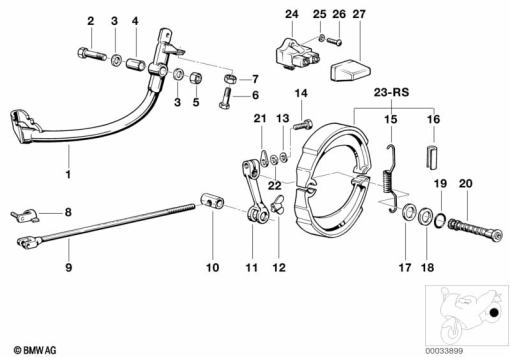

Parts List (34)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35 21 1 241 720 | BRAKE LEVER | - | |
| 2 | 07 11 9 904 533 | HEX BOLT - M8X50 | - | |
| 3 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | - | |
| 4 | 35 21 1 242 216 | BUSH | - | |
| 5 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | - | |
| 6 | 07 11 9 904 116 | HEX BOLT - M6X30-8.8-ZNS3 | - | |
| 7 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 8 | 07 12 9 934 961 | PIN - 6X12 | - | |
| 9 | 35 21 1 232 999 | PULL ROD | - | |
| 10 | 34 21 4 044 141 | 0.03 | - | |
| 11 | 35 21 1 239 078 | BRAKE LEVER | - | |
| 12 | 35 21 1 232 137 | WING NUT | - | |
| - | 35 21 1 232 9991 | BRAKE ROD SS R50/5-R100RT | - | |
| 13 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 13 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 13 | - | ||
| 15 | 34 21 1 457 091 | TENSION SPRING | - | |
| - | 07 11 9 932 0701 | SS 6MM WASHER | - | |
| - | 07 11 9 932 073 | BLACK SPRING WASHER | - | |
| 16 | 34 21 1 457 572 | ABSORBER | - | |
| 17 | 35 21 1 230 360 | GASKET RING - 14X22X1.50 | - | |
| 18 | 34 21 3 060 107 | WASHER | - | |
| 19 | 07 11 9 906 328 | O-RING - 10X2 (to 09/83) | - | |
35 21 1 457 605 | GASKET RING - 12X1 (from 09/83)Alternative for position 19 | - | ||
| 20 | 35 21 1 454 837 | REAR BRAKE CAM (to 09/83) | - | |
35 21 1 458 034 | REAR BRAKE CAM (from 09/83)Alternative for position 20 | - | ||
| 21 | 35 21 2 301 636 | SHACKLE | - | |
| 22 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 23 | 34 21 2 310 523 | SET: REPAIR KIT BRAKE SHOE ASBESTOS-FREE - 25MM 2 BACKEN | - | |
| 24 | 61 31 1 353 684 | STOP LIGHT SWITCH | - | |
| 25 | 07 11 9 932 033 | WAVE WASHER - B4 | - | |
| 26 | 07 11 9 906 734 | FILLISTER HEAD SELF-TAPPING SCREW - ST3,9X16 | - | |
| 27 | 61 31 1 351 249 | 0.01 | - | |
| - | 61 31 1 353 684SC | 3.5X6MM SLOTTED SCREW FOR REAR BRAKE LIGHT SWITCH | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
