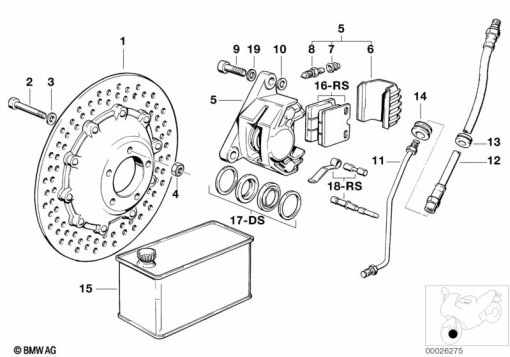

Parts List (25)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 11 1 236 005 | BRAKE DISK | - | |
| 2 | 07 11 9 901 038 | FILLISTER-HEAD SCREW - M8X70-8.8-ZNS | - | |
07 11 9 919 658 | SOCKET HEAD CAP SCREWAlternative for position 2 | - | ||
| 3 | 34 11 2 302 077 | WASHER | - | |
| 4 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | - | |
| 5 | 34 11 1 464 850 | CALIPER WITH OUT BRAKE PADS RIGHT - D=38 | - | |
| 6 | 34 21 1 238 058 | COVERING CAP - 20 3254.10 | - | |
| 7 | 34 21 1 236 794 | DUST CAP | - | |
| 8 | 34 21 1 236 793 | VENT SCREW - M10X1-ZN | - | |
| 9 | 07 11 9 901 049 | FILLISTER-HEAD SCREW - M10X30-8.8-ZNS | - | |
| 10 | 34 32 1 242 308 | RING - 5 | - | |
| 11 | 34 32 1 242 270 | BRAKE PIPE | - | |
| 12 | 34 32 1 242 106 | BRAKE HOSE | - | |
| 13 | 34 32 1 237 259 | GROMMET | - | |
| 14 | 34 32 1 236 462 | GROMMET | - | |
| 15 | 83 13 2 445 461 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1L (to 12/92) | - | |
83105A87362 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1LAlternative for position 15 | - | ||
83 13 2 467 961 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250ML (to 12/92)Alternative for position 15 | - | ||
83105A87361 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250MLAlternative for position 15 | - | ||
| 16 | 34 21 7 657 025 | SET: BRAKE PADS KIT | - | |
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 16 | - | ||
| 17 | 34 21 1 237 234 | SET: REPAIR BRAKE CALIPER - D=38MM | - | |
| - | 34 21 7 657 025 | BRAKE PADS KIT | - | |
| 18 | 34 21 1 238 059 | SET: MOUNTING PARTS - BREMBO | - | |
| 19 | 11 12 1 336 872 | WASHER - 3,5 ZNS | - |
