Parts List (20)

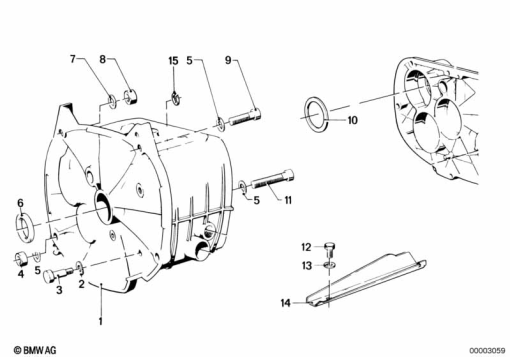

| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 11 1 233 847 | TRANSMISSION HOUSING | 1 | |
| 2 | 07 11 9 904 463 | WAVE WASHER - B10-ZNS3 | 1 | |
| 3 | 23 31 1 231 614 | SCREW | 1 | |
| 4 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 12/96) | 1 | |
| 4 | 07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SI | 1 | |
| 5 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | 1 | |
| 6 | 23 12 1 338 726 | SHAFT SEAL - 26.5X40X9 | 1 | |
| 7 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | 1 | |
| 8 | 11 61 1 713 432 | HEX NUT WIHT FLANGE - M8 | 1 | |
| 9 | 07 11 9 902 984 | FILLISTER-HEAD SCREW - M8X40-8.8-ZNS3 | 1 | |
| 8 | 18 30 7 620 549 | HEX NUT WITH FLANGE | 1 | |
| 10 | 23 21 1 231 625 | SHIM - 0.280MM | 1 | |
| 10 | 23 21 1 231 626 | SHIM - 0.380MM | 1 | |
| 10 | 23 21 1 231 627 | SHIM - 0.500MM | 1 | |
| 10 | 23 21 1 233 475 | SHIM - 0.200MM | 1 | |
| 11 | 07 12 9 905 153 | ISA SCREW - M8X85-ZNS3 | 1 | |
| 12 | 07 11 9 900 692 | FILLISTER HEAD SCREW - M4X12 | 1 | |
| 13 | 07 11 9 963 003 | GASKET RING - A4X8-AL | 1 | |
| 14 | 23 11 1 233 479 | COVERING PLATE | 1 | |
| 15 | 23 11 1 242 961 | SNAP RING | 1 |
