R65 (2472) | Transmission

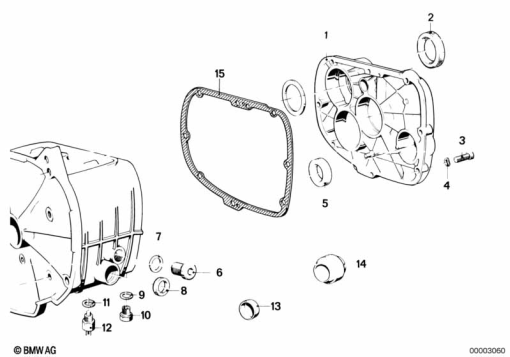

GEARBOX COVER,GASKET AND VARIOUS BOLTS
Diagram #23_0250 | 22 parts | 2 available in shop
100%
Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 11 1 241 831 | TRANSMISSION COVER | 1 | |
| 2 | 23 12 1 232 681 | SHAFT SEAL - 40X70X7 | 1 | |
| 2 | 23 12 1 232 681.1 | VITON SEAL RING | 1 | |
| 3 | 07 12 9 901 130 | ISA SCREW - M6X20-8.8-ZNNIV | 1 | |
| 4 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | 1 | |
| 4 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 4 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 4 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 6 | 07 11 9 905 428 | SCREW PLUG - M18X1,5-ZNNIV | 1 | |
| 7 | 07 11 9 963 300 | GASKET RING - A18X22-AL | 1 | |
| 6 | 07 11 9 905 428M | DRAIN PLUG W/ MAGNET | 1 | |
| 8 | 23 12 1 338 740 | SHAFT SEAL - 16X26X7 | 1 | |
| 9 | 07 11 9 963 200 | GASKET RING - A14X18-AL | 1 | |
| 8 | 23 12 1 338 740.1 | VITON FOOTSHIFT SEAL | 1 | |
| 10 | 11 13 1 744 329 | SCREW PLUG, MAGNETIC - M14X1,5 | 1 | |
| 11 | 61 31 1 355 262 | GASKET RING - A12.2X20X2-AL | 1 | |
| 12 | 61 31 1 243 097 | SWITCH | 1 | |
| 13 | 07 11 9 937 227 | COVER LID - D=14MM | 1 | |
| 12 | 6131097 | NEUTRAL LIGHT SWITCH | 1 | |
| 12 | 61 31 1 243 097N | NEUTRAL SWITCH NORIS 5 SPEED | 1 | |
| 14 | 23 11 1 233 383 | JOINT BEARING - 16X26X12 | 1 | |
| 15 | 23 11 1 338 596 | GASKET ASBESTOS FREE | 1 |
