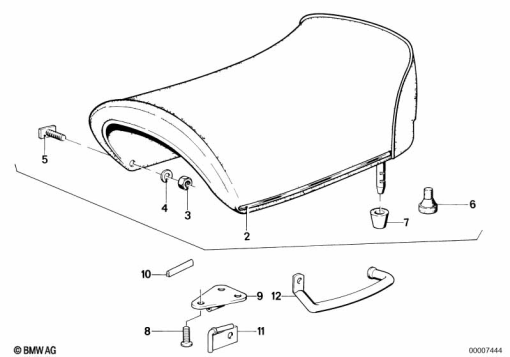

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52 53 1 237 833 | SINGLE SEAT - LANG/465MM | - | |
| 2 | 52 53 1 234 716 | DECORATIVE STRIP | - | |
| 3 | 07 11 9 922 014 | HEX NUT, SS | - | |
07 11 9 922 016 | HEX NUT - M3Alternative for position 3 | - | ||
| 4 | 07 11 9 931 015 | WASHER - A3,2 | - | |
| 5 | 52 53 1 231 319 | SCREW | - | |
| 6 | 17 11 1 460 400 | BUMP STOP | - | |
52 53 1 230 319 | RUBBER SUPPORT - D=18MMAlternative for position 6 | - | ||
52 53 1 236 128 | BUMP STOP - H=10Alternative for position 6 | - | ||
| 7 | 52 53 1 452 296 | BUMP STOP | - | |
| 8 | 07 11 9 900 810 | SCREW | - | |
07 11 9 900 810BO | CSUNK SCREW M6X10 BLK OXIDEAlternative for position 8 | - | ||
07 11 9 900 811 | COUNTERSUNK HEAD SCREW - M6X10Alternative for position 8 | - | ||
| 9 | 52 53 2 303 315 | HINGE | - | |
| 10 | 52 53 1 240 584 | EDGE PROTECTION | - | |
| 11 | 52 53 2 303 310 | AXLE | - | |
| 12 | 46 51 1 234 637 | HANDLE | - |
