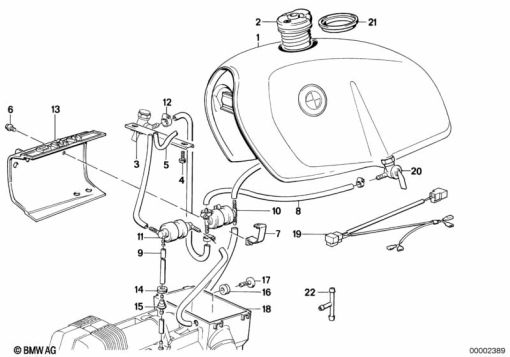

Parts List (25)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 11 1 452 453 | FUEL TANK PRIME COATED - SHED | - | |
| 2 | 51 25 2 307 140 | FILLER CAP | - | |
51 25 2 316 185 | FILLER CAP - SHED/CRAlternative for position 2 | - | ||
| - | 51 25 2 307 166 | LOCK CYLINDER WITH KEY | - | |
| 3 | 16 11 1 453 589 | 0.15 | - | |
| 4 | 07 11 9 915 033 | HEX BOLT WITH WASHER - M6X12-Z3-1 | - | |
| 5 | 16 13 1 237 912 | HOSE - 750MM | - | |
| 6 | 07 11 9 919 792 | FILLISTER-HEAD SCREW - M6X10 | - | |
| 7 | 16 12 1 453 090 | CLAMP | - | |
| 8 | 13 11 1 338 115 | BULK MATERIAL, FUEL HOSE - 6X11 (meter) | - | |
| 9 | 11 72 7 545 323 | VACUUM HOSE BLACK - 3,5X1,8 (meter) | - | |
| 10 | 16 12 1 453 095 | FUEL TAP - SHED | - | |
| 11 | 16 13 1 453 097 | VENTILATION VALVE | - | |
| 12 | 07 12 9 952 102 | HOSE CLAMP - L=9-12 | - | |
16 11 1 338 513 | HOSE CLAMP - D=7Alternative for position 12 | - | ||
| 13 | 11 14 1 337 743 | COVER - SHED | - | |
| 14 | 07 14 7 267 586 | RUBBER GROMMET | - | |
| 15 | 16 13 1 453 142 | VALVE | - | |
| 16 | 16 13 1 337 747 | GROMMET - SHED | - | |
| 17 | 16 13 1 337 748 | PIPE | - | |
| 18 | 13 72 1 337 750 | AIR CLEANER HOUSING BOTTOM - SHED | - | |
| 19 | 61 12 1 244 672 | CABLE HARNESS | - | |
| 20 | 16 12 2 307 113 | FUEL TAP LEFT | - | |
16 12 2 307 114 | FUEL TAP RIGHTAlternative for position 20 | - | ||
| 21 | 51 25 1 453 148 | GASKET | - |
