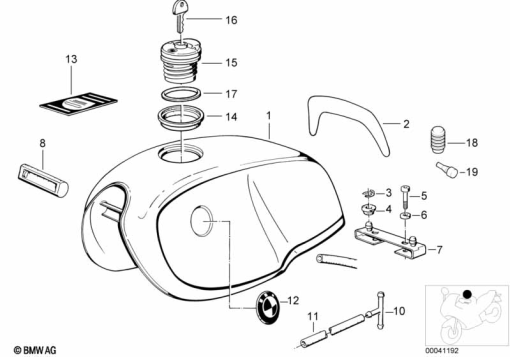

Parts List (26)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 16 11 1 453 403 | FOIL | - | |
| 3 | 07 12 9 906 727 | CLIP - 12-ZNS3 | - | |
| 4 | 46 63 1 453 144 | RUBBER GROMMET | - | |
| 5 | 07 12 9 903 809 | ISA SCREW - M6X40 | - | |
| 6 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 6 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 6 | - | ||
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 6 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 6 | - | ||
| 7 | 46 51 1 452 469 | HOLDER | - | |
| 8 | 16 11 1 230 031 | RUBBER MOUNTING | - | |
| 9 | 16 13 2 307 010 | HOSE - 1330MM | - | |
| 10 | 13 11 1 254 083 | DISTRIBUTION PIECE | - | |
| 11 | 13 11 1 338 115 | BULK MATERIAL, FUEL HOSE - 6X11 (meter) | - | |
| 12 | 46 63 7 686 746 | BADGE - D=70MM | - | |
| 13 | 51 14 1 453 617 | LABEL - HELM | - | |
| 14 | 16 11 2 307 360 | RING | - | |
| 15 | 51 25 2 307 168 | SET: FILLER CAP WITH LOCK CYLINDER | - | |
51 25 2 307 125.M | FLIP LID GASCAPAlternative for position 15 | - | ||
51 25 2 307 1251 | REPRO OG TYPE FUEL CAP KEYAlternative for position 15 | - | ||
51 25 2 307 1252 | REPRO OG SCREW IN FUEL CAP KEYAlternative for position 15 | - | ||
| 16 | 51 25 1 453 659 | 0.02 | - | |
| 17 | 51 25 1 453 148 | GASKET | - | |
| - | ELA53660 | FOLDING BLANK RECTANGLE | - | |
| 18 | 51 23 1 852 347 | STOP BUFFER | - | |
| 19 | 52 53 1 232 904 | SUPPORT - H=16 | - |
