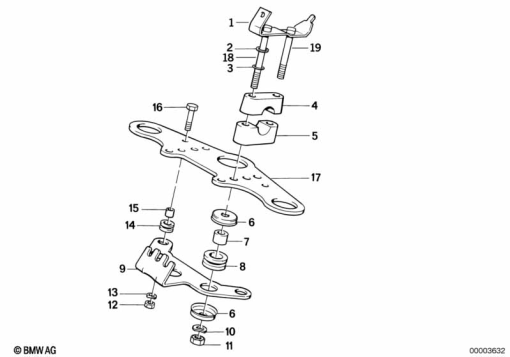

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 71 2 307 141 | HOLDER | - | |
| 2 | 32 71 1 452 463 | RING | - | |
| 3 | 46 71 1 451 942 | RING | - | |
| 4 | 32 71 1 452 461 | CLAMPING SUPPORT, TOP | - | |
| 5 | 32 71 1 232 926 | CLAMP SUPPORT, BLACK, LOWER | - | |
| 6 | 31 42 1 232 243 | 0.01 | - | |
| 7 | 31 42 1 232 241 | BUSH | - | |
| 8 | 31 42 1 235 620 | RUBBER GROMMET | - | |
| 9 | 31 42 1 236 883 | HOLDER | - | |
| 10 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 11 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 12/95) | - | |
07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SIAlternative for position 11 | - | ||
| 12 | 07 12 9 922 705 | SELF-LOCKING HEX NUT - M6-10 ZN (to 12/95) | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 12 | - | ||
07 14 7 575 163 | SELF-LOCKING HEX NUTAlternative for position 12 | - | ||
| 13 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 13 | - | ||
| 14 | 31 42 1 235 615 | RUBBER GROMMET | - | |
| 15 | 31 42 1 232 242 | BUSH | - | |
| 16 | 31 42 1 240 053 | HEXAGON BOLT BLACK - M6X28-8.8-ZN | - | |
| 17 | 31 42 1 452 135 | UPPER FORK CROSS BRACE | - | |
| 18 | 07 11 9 912 470 | HEX BOLT - M8X70-8.8-ZNS | - | |
| 19 | 07 11 9 912 471 | HEX BOLT - M8X90-8.8-ZNS | - |
