R65 (2472) | Frame, Fairing, Cases

TOURING CASE

Diagram #46_0044 | 17 parts

100%

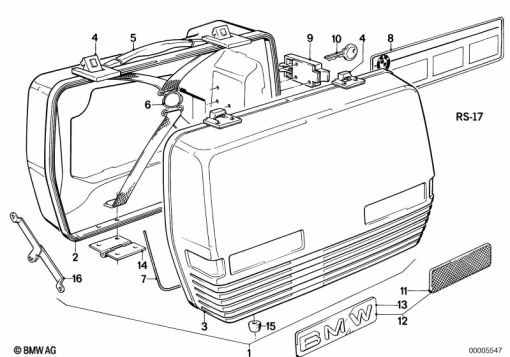

R65 (2472) TOURING CASE exploded view parts diagram

Parts List (17)

#Part NumberDescriptionQty
1
46 54 9 062 853
HOUSING BOTTOM LEFT (to 04/89)-
2
46 54 9 062 854
HOUSING BOTTOM RIGHT (to 04/89)-
3
46 54 1 237 992
COVER-
4
46 54 2 300 007
CASE CATCH (to 04/89)-
46 54 2 300 009
CASE CATCH - (CODE) (to 04/89)Alternative for position 4-
5
46 54 2 300 013
HANDLE (to 04/89)-
6
46 54 2 300 015
RUBBER BAND (to 04/89)-
7
46 54 2 300 016
GASKET (to 04/89)-
9
46 54 2 300 008
CASE SUSPENSION CATCH (to 04/89)-
46 54 2 300 012
CASE SUSPENSION CATCH - (CODE) (to 04/89)Alternative for position 9-
10
46 54 2 300 006
STANDARD KEY (CODE) (to 04/89)-
11
63 14 1 239 457
SIDE REFLECTOR FRONT - RED-
12
46 54 9 055 648
SET: INSTALLING SIDE MARKING LIGHT - RED-
13
46 54 1 239 455
EMBLEM - "BMW"-
14
46 54 2 300 018
HINGE (to 04/89)-
15
46 54 2 300 017
PAD (to 04/89)-
17
46 54 9 057 696
SET: SET RIVET-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
