R65 (2472) | Frame, Fairing, Cases

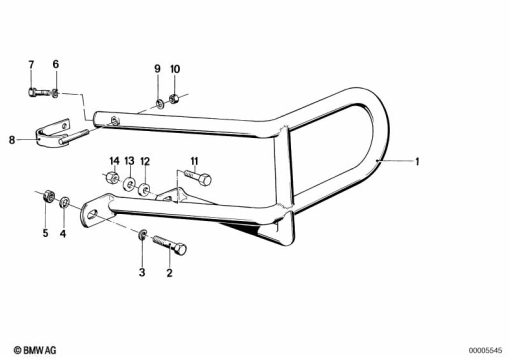

MOUNTING PARTS F REAR PROTECTION BAR
Diagram #46_0042 | 21 parts | 2 available in shop
100%
Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 2 303 439 | PROTECTION BAR REAR LEFT - CHROME | 1 | |
| 1 | 46 71 2 303 442 | PROTECTION BAR REAR RIGHT | 1 | |
| 2 | 07 11 9 906 181 | HEX BOLT - M8X25-8.8-ZNNIV | 1 | |
| 3 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | 1 | |
| 4 | 07 11 9 931 684 | WASHER - 8,4 140HV | 1 | |
| 5 | 07 12 9 906 196 | SELF-LOCKING HEX NUT - M8-8-ZNNI SI | 1 | |
| 6 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | 1 | |
| 6 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 6 | 07 11 9 904 496 | WAVE WASHER - B6-ZNS3 | 1 | |
| 7 | 07 11 9 904 633 | HEX BOLT - M6X10-8.8-ZNS3 | 1 | |
| 8 | 46 71 1 238 313 | CLAMP | 1 | |
| 6 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 6 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 9 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | 1 | |
| 10 | 07 12 9 922 705 | SELF-LOCKING HEX NUT - M6-10 ZN (to 12/95) | 1 | |
| 10 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | 1 | |
| 11 | 07 11 9 906 650 | FILLISTER-HEAD SCREW - M8X35-10.9-ZNS3 | 1 | |
| 12 | 46 71 2 300 468 | BUSH | 1 | |
| 13 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | 1 | |
| 14 | 07 12 9 906 196 | SELF-LOCKING HEX NUT - M8-8-ZNNI SI | 1 | |
| 10 | 07 14 7 575 163 | SELF-LOCKING HEX NUT | 1 |
