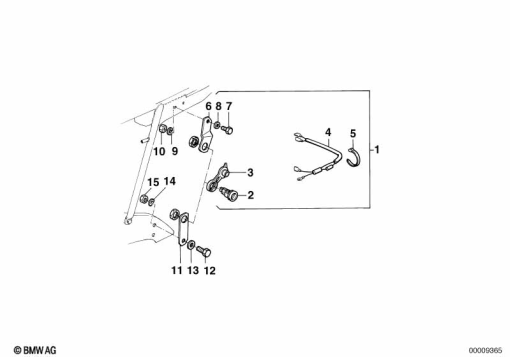

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 13 2 300 473 | SET: RETROFIT KIT, SOCKET (to 08/90) | 1 | |
| 2 | 61 13 1 379 719 | PLUG-IN SOCKET (to 08/90) | 1 | |
| 3 | 61 12 2 303 574 | COVER (to 08/90) | 1 | |
| 4 | 61 12 1 243 659 | WIRING PLUG TERMINAL (to 08/90) | 1 | |
| 5 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM (to 08/90) | 1 | |
| 6 | 61 13 2 300 472 | HOLDER (to 08/90) | 1 | |
| 7 | 07 11 9 913 015 | HEX BOLT - M6X16-8.8-ZNS (to 08/90) | 1 | |
| 8 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI (to 08/90) | 1 | |
| 9 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (to 08/90) | 1 | |
| 9 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS (to 08/90) | 1 | |
| 9 | 07 11 9 904 496 | WAVE WASHER - B6-ZNS3 (to 08/90) | 1 | |
| 9 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 9 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 10 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI (to 08/90) | 1 | |
| 11 | 61 13 1 239 368 | HOLDER (to 08/90) | 1 | |
| 12 | 07 11 9 913 830 | HEX BOLT - M10X20-10.9-PHR (to 08/90) | 1 | |
| 13 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV (to 08/90) | 1 | |
| 14 | 07 11 9 904 463 | WAVE WASHER - B10-ZNS3 (to 08/90) | 1 | |
| 15 | 07 11 9 915 558 | HEX NUT - M10-8-ZNS (to 08/90) | 1 |
