R65 (2472) | Equipment Parts

CAR TOOL

Diagram #71_0144 | 26 parts

100%

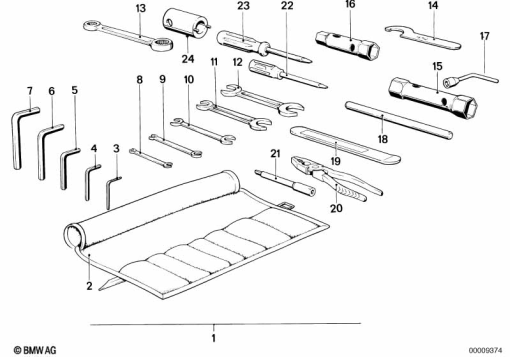

R65 (2472) CAR TOOL exploded view parts diagram

Parts List (26)

#Part NumberDescriptionQty
1
71 11 1 240 890
SET: TOOL KIT-
2
71 11 1 230 752
TOOL BAG-
71 11 1 230 752L
EMPTY BLACK TOOL BAG WILLIE AND MAXAlternative for position 2-
3
71 11 1 237 853
INNER HEX SPANNER - BLACK3-
4
71 11 1 237 852
INNER HEX SPANNER - BLACK4-
5
71 11 1 237 851
INNER HEX SPANNER - BLACK5-
6
71 11 1 237 850
INNER HEX SPANNER - BLACK6-
7
71 11 1 237 849
INNER HEX SPANNER - BLACK8-
8
71 11 1 237 841
DOUBLE OPEN-END WRENCH - 7X8-
9
71 11 1 237 842
DOUBLE OPEN-END WRENCH - 10X11-
10
07 11 9 999 119
DOUBLE OPEN-END WRENCH - 12X14-
11
07 11 9 999 122
DOUBLE OPEN-END WRENCH - 13X17-
12
07 11 9 999 127
DOUBLE OPEN-END WRENCH - 16X18-
13
71 11 1 237 847
RING SPANNER - 10X12-
71 11 1 237 848
RING SPANNER - 19X22Alternative for position 13-
14
71 11 2 300 061
HOOK WRENCH-
15
71 11 1 237 856
SOCKET WRENCH-
16
71 11 2 303 629
SOCKET WRENCH - 19-
71 11 9 090 129
SOCKET WRENCH - 13X19Alternative for position 16-
17
71 11 1 240 891
SOCKET WRENCH - 17-
19
71 11 1 237 871
TIRE LEVER-
20
71 11 1 103 092
COMBINATION PLIERS-
21
71 11 1 240 892
EXTENSION-
22
71 11 9 090 147
SCREWDRIVER-
23
71 11 1 179 629
SCREWDRIVER-
24
71 11 1 242 969
SOCKET WRENCH-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
