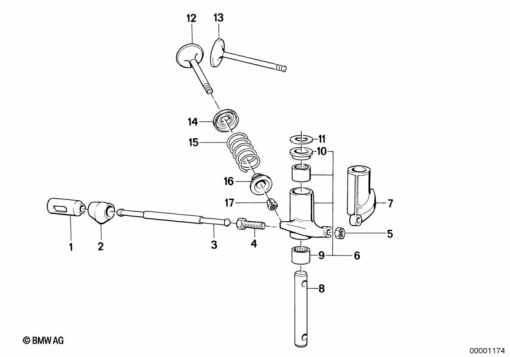

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 32 1 335 087 | CAM FOLLOWER | - | |
| 2 | 11 11 1 335 090 | RUBBER GROMMET | - | |
| 3 | 11 32 1 335 088 | VALVE PUSHROD | - | |
| 4 | 11 33 1 744 328 | SCREW | - | |
| 5 | 11 33 1 744 331 | NUT - M8X1-SW12 | - | |
| 6 | 11 33 1 337 715 | ROCKER ARM - NO.2 | - | |
| 7 | 11 33 1 337 713 | ROCKER ARM - NO.1 | - | |
| 8 | 11 33 1 336 942 | ROCKER ARM SHAFT | - | |
| 9 | 11 33 1 261 712 | NEEDLE BEARING - 15.5X20X18 | - | |
| 10 | 11 33 1 337 717 | THRUST BEARING | - | |
| 11 | 11 33 1 337 718 | SHIM - 0.30 | - | |
11 33 1 337 719 | SHIM - 0.25Alternative for position 11 | - | ||
11 33 1 337 720 | SHIM - 0.20Alternative for position 11 | - | ||
11 33 1 337 721 | SHIM - 0.35Alternative for position 11 | - | ||
11 33 1 338 190 | SHIM - 0.50Alternative for position 11 | - |
