R65 (2472) | Engine

CYLINDER HEAD

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #11_1785 | 34 parts

100%

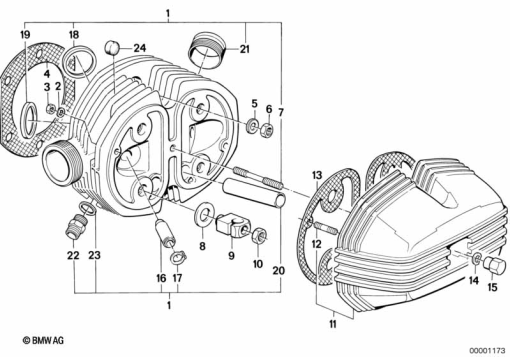

R65 (2472) CYLINDER HEAD exploded view parts diagram

Parts List (34)

#	Part Number	Description	Qty
1	11 12 1 338 208	CYLINDER HEAD LEFT - SLS	-
	11 12 1 338 209	CYLINDER HEAD RIGHT - SLSAlternative for position 1	-
2	07 11 9 932 0701	SS 6MM WASHER	-
	07 11 9 932 073	SPRING WASHER BLACK - B6-ZNAlternative for position 2	-
	07 11 9 932 073	BLACK SPRING WASHERAlternative for position 2	-
	07 11 9 936 439	WASHER - 5.3-140 HV-ZNSAlternative for position 2	-
3	07 11 9 905 543	HEX NUT - M6-8-ZNNIV SI	-
4	11 12 1 338 716	CYLINDER HEAD GASKET ASBESTOS-FREE	-
5	11 12 1 336 872	WASHER - 3,5 ZNS	-
6	11 11 1 263 903	HEX NUT	-
7	07 12 9 908 142	STUD BOLT - M8X70	-
8	11 12 1 337 868	BASE	-
9	11 12 1 337 867	SUPPORT FOR ROCKER ARM SHAFT	-
10	11 12 7 650 402	HEX NUT - M10	-
11	11 12 1 263 761	CYLINDER HEAD COVER, SILVER, RIGHT	-
	11 12 1 263 762	CYLINDER HEAD COVER, SILVER, LEFTAlternative for position 11	-
12	07 12 9 904 546	STUD BOLT - M6X40	-
13	11 12 1 338 426	GASKET - ASBESTFREI	-
14	07 11 9 904 115	WAVE WASHER - 8,4X15-ZNS3	-
15	11 12 0 023 160	TAPPET COVER CAP NUT SS	-
	11 12 1 744 330	CAP NUT - M8-CRAlternative for position 15	-
	11 12 1 744 330.1	TAPPET CVR NUTAlternative for position 15	-
16	11 12 1 338 709	VALVE GUIDE - 14.06	-
	11 12 1 338 710	VALVE GUIDE - 14.25Alternative for position 16	-
17	11 12 1 744 332	LOCK RING	-
18	11 12 1 337 525	VALVE SEAT RING INTAKE - +0,2	-
	11 12 1 337 526	VALVE SEAT RING INTAKE - +0,4Alternative for position 18	-
19	11 12 1 337 897	VALVE SEAT INSERT EXHAUST LEAD-FREE - +0,2	-
	11 12 1 337 898	VALVE SEAT INSERT EXHAUST LEAD-FREE - +0.4Alternative for position 19	-
20	11 12 1 262 259	PROTECTION TUBE	-
21	11 12 1 257 396	CONNECTOR - 64/32 - M42X1.5	-
22	07 11 9 972 501	CONNECTOR - 10X16	-
23	07 11 9 963 252	GASKET RING - A16X20-AL	-
24	11 12 1 337 818	PUSHROD SEAL	-
