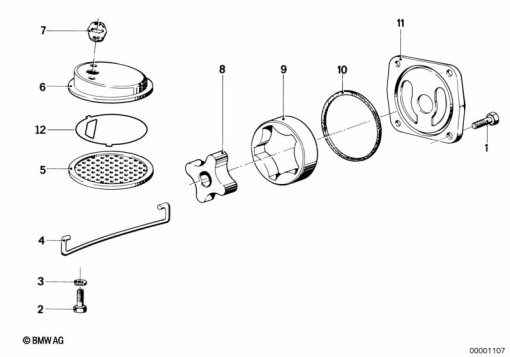

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 11 9 904 357 | HEX BOLT - M6X16-8.8-ZNS3 | 1 | |
| 1 | 07 11 9 913 464 | hex bolt 6 x 1.0 x 16 | 1 | |
| 2 | 07 11 9 902 993 | HEX BOLT - M6X50 8.8 ZNS3 | 1 | |
| 3 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | 1 | |
| 3 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 4 | 11 41 1 252 226 | WIRE-STRAP | 1 | |
| 3 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 3 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 5 | 11 41 1 337 509 | PERFORATED PLATE | 1 | |
| 6 | 11 41 1 337 536 | SUCTION HEAD | 1 | |
| 7 | 11 41 1 265 258 | GASKET | 1 | |
| 8 | 11 41 1 335 194 | ROTOR INNER | 1 | |
| 9 | 11 41 1 253 293 | ROTOR,OUTER | 1 | |
| 10 | 11 41 1 335 895 | O-RING - 62X2 | 1 | |
| 11 | 11 41 1 338 544 | OIL PUMP COVER | 1 |
