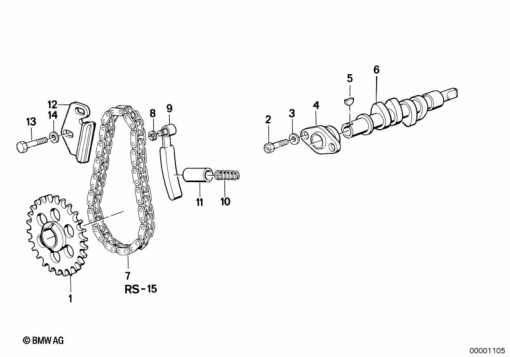

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 31 1 335 588 | CAMSHAFT GEAR | 1 | |
| 2 | 11 31 1 337 107 | HEX BOLT - M8 | 1 | |
| 3 | 07 11 9 932 093 | WAVE WASHER - B8 | 1 | |
| 3 | 07 11 9 932 095 | WAVE WASHER | 1 | |
| 4 | 11 31 1 250 251 | FLANGE | 1 | |
| 5 | 07 11 9 951 480 | WOODRUFF KEY - 5X6.5 | 1 | |
| 6 | 11 31 1 335 181 | CAMSHAFT CAMSHAFT - 308DEG | 1 | |
| 7 | 11 31 1 335 580 | TIMING CHAIN | 1 | |
| 8 | 07 11 9 932 841 | CIRCLIP - D=6MM | 1 | |
| 9 | 11 31 1 338 185 | CHAIN TENSIONER | 1 | |
| 10 | 11 31 1 335 584 | COIL SPRING | 1 | |
| 11 | 11 31 1 335 579 | PISTON | 1 | |
| 12 | 11 31 1 335 576 | SLIDE RAIL | 1 | |
| 13 | 07 11 9 904 040 | HEX BOLT - M8X22-8.8-ZNS3 | 1 | |
| 14 | 07 11 9 931 684 | WASHER - 8,4 140HV | 1 | |
| 15 | 11 31 1 337 600 | LOCK | 1 |
