R65 (2472) | Engine Electrics
STARTER SINGLE PARTS / BOSCH

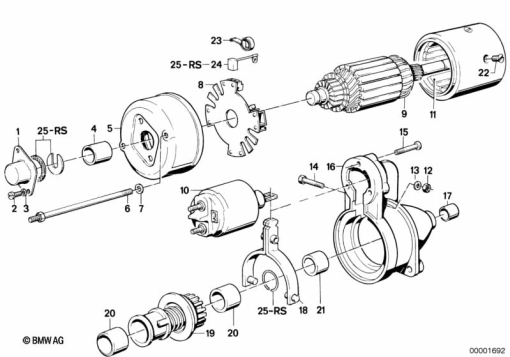

Diagram #12_0740 | 25 parts | 1 available in shop
100%
Parts List (25)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 41 1 352 539 | 0.02 | 1 | |
| 2 | 07 11 9 919 367 | FILLISTER-HEAD SCREW - AM4X8 (to 12/95) | 1 | |
| 3 | 07 11 9 932 100 | WAVE WASHER - B4 | 1 | |
| 4 | 12 41 1 722 916 | BUSHING | 1 | |
| 5 | 12 41 1 352 534 | COLLECTOR GUIDING | 1 | |
| 6 | 12 41 1 352 538 | FILLISTER-HEAD SCREW | 1 | |
| 7 | 07 11 9 931 029 | WASHER - A5,3-140 HV-ZNS (to 12/95) | 1 | |
| 8 | 12 41 1 352 535 | BRUSH HOLDER PLATE | 1 | |
| 9 | 12 41 1 243 139 | ARMATURE | 1 | |
| 10 | 12 41 1 243 142 | SOLENOID SWITCH | 1 | |
| 11 | 12 41 1 243 135 | EXCITER WINDING | 1 | |
| 12 | 07 11 9 921 054 | HEX NUT - M6-04-2-ZN | 1 | |
| 13 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | 1 | |
| 14 | 12 41 1 352 529 | FILLISTER-HEAD SCREW | 1 | |
| 15 | 12 41 1 243 143 | COUNTERSUNK HEAD SCREW | 1 | |
| 16 | 12 41 1 243 137 | HOUSING ASSY FRONT | 1 | |
| 17 | 12 41 1 352 527 | BUSHING | 1 | |
| 18 | 12 41 1 243 138 | SHIFT LEVER | 1 | |
| 19 | 12 41 1 243 402 | STARTER PINION | 1 | |
| 20 | 11 51 1 722 914 | BUSHING | 1 | |
| 21 | 12 41 1 722 915 | RING | 1 | |
| 22 | 07 11 9 900 147 | COUNTERSUNK HEAD SCREW - M8X10-4.8 PHR | 1 | |
| 23 | 12 41 1 352 537 | COMPRESSION SPRING | 1 | |
| 24 | 12 41 1 352 536 | SET: CARBON BRUSH SET | 1 | |
| 25 | 12 41 1 352 541 | SET: REPAIR KIT FOR STARTER | 1 |
