R65 (2472) | Engine Electrics

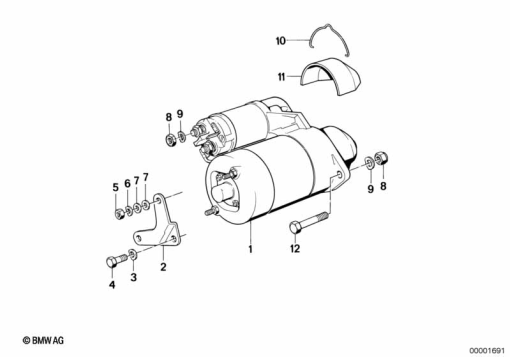

STARTER MOUNTING HARDWARE
Diagram #12_0739 | 17 parts | 2 available in shop
100%
Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 12 41 1 351 590 | SUPPORT (to 08/88) | 1 | |
| 3 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 3 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 3 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (to 08/88) | 1 | |
| 3 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS (to 08/88) | 1 | |
| 3 | 07 11 9 904 496 | WAVE WASHER - B6-ZNS3 (to 08/88) | 1 | |
| 4 | 07 11 9 904 357 | HEX BOLT - M6X16-8.8-ZNS3 (to 08/88) | 1 | |
| 5 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 08/88) | 1 | |
| 6 | 07 11 9 932 098 | WAVE WASHER - B5 (to 08/88) | 1 | |
| 7 | 07 11 9 931 029 | WASHER - A5,3-140 HV-ZNS (to 08/88) | 1 | |
| 7 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS (to 08/88) | 1 | |
| 8 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 (to 08/88) | 1 | |
| 9 | 07 11 9 932 095 | WAVE WASHER - B8 (to 08/88) | 1 | |
| 10 | 11 14 1 337 171 | WIRE-STRAP (to 08/88) | 1 | |
| 9 | 07 11 9 932 095.1 | M8 SPRING WASHER B8 V2A | 1 | |
| 11 | 11 14 1 255 793 | COVER (to 08/88) | 1 | |
| 12 | 07 11 9 902 955 | HEX BOLT - M8X45-8.8-ZNS3 (to 08/88) | 1 |
