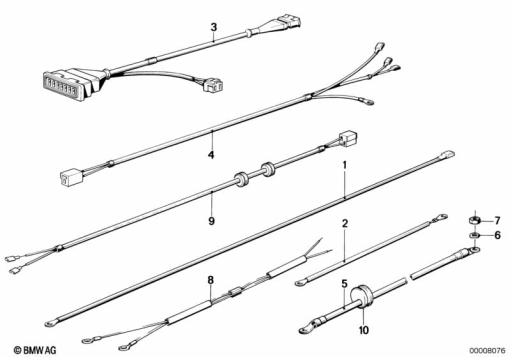

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 12 1 243 224 | WIRE CHARGING CURRENT | - | |
| 2 | 61 12 1 244 475 | BATTERY CABLE NEGATIVE | - | |
| 3 | 61 12 1 244 176 | WIRE IGNITION COIL | - | |
| 4 | 61 12 1 243 523 | WIRING TRANSMISSION-SWITCH | - | |
| 5 | 61 12 1 243 473 | BATTERY CABLE (PLUS POLE) | - | |
| 6 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
07 11 9 932 095.1 | M8 SPRING WASHER B8 V2AAlternative for position 6 | - | ||
| 7 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 12/95) | - | |
07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SIAlternative for position 7 | - | ||
| 8 | 61 12 1 243 659 | WIRING PLUG TERMINAL (to 12/90) | - | |
| 9 | 61 12 1 244 415 | WIRING TURN SIGNAL LEFT | - | |
61 12 1 244 416 | WIRING TURN SIGNAL RIGHTAlternative for position 9 | - | ||
| 10 | 61 13 1 244 464 | RUBBER GROMMET | - |
