R65 (2472) | Electrical System

BATTERY

Diagram #61_0245 | 29 parts

100%

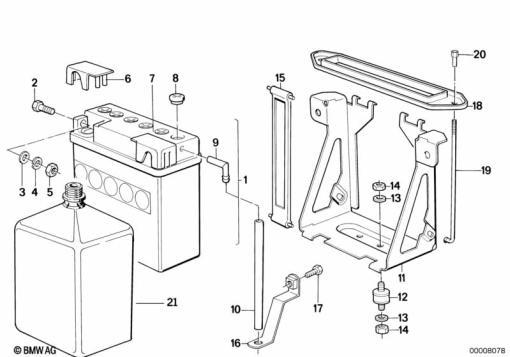

R65 (2472) BATTERY exploded view parts diagram

Parts List (29)

#Part NumberDescriptionQty
1
53030
YUASA BATTERY-
61 21 1 459 650
EMPTY BATTERY - 12V 25AHAlternative for position 1-
2
61 21 1 459 655
HEX BOLT - M6X20-
3
61 21 1 459 657
WASHER - A6,4-
4
61 21 7 670 327
SPRING WASHER - B6-
5
61 21 1 459 656
HEX NUT - M6-
7
61 21 1 459 099
COVERING CAP - + POL-
8
61 21 1 459 106
BLIND PLUG-
9
61 21 1 459 247
HOSE CONNECTOR (to 02/87)-
61 21 1 459 743
HOSE CONNECTOR (from 02/87)Alternative for position 9-
11
61 21 1 452 341
BATTERY HOLD DOWN-
12
61 21 1 233 028
RUBBER MOUNTING-
FRA33028
RUB. MNT. BAT BOX 8-15-8MMAlternative for position 12-
13
07 11 9 932 073
SPRING WASHER BLACK - B6-ZN-
07 11 9 932 0701
SS 6MM WASHERAlternative for position 13-
07 11 9 932 073
BLACK SPRING WASHERAlternative for position 13-
07 11 9 936 439
WASHER - 5.3-140 HV-ZNSAlternative for position 13-
07 11 9 904 496
WAVE WASHER - B6-ZNS3Alternative for position 13-
14
07 11 9 905 543
HEX NUT - M6-8-ZNNIV SI-
15
61 21 1 243 562
TENSION STRAP-
16
61 21 1 244 432
HOLDER-
17
07 11 9 913 013
HEX BOLT - M6X12-
18
61 21 1 452 240
CHAIN TENSIONER-
19
61 21 1 452 342
THREADED ROD-
20
62 13 1 356 825
62 13 1 356 8252
62 13 1 459 257
KNURLED NUTAlternative for position 20-
-
61 21 1 452 342
THREADED ROD-
21
61 21 9 056 971
BATTERY ACID PARCEL (6 BOTTLES) - 15AH-20AH-
61 21 9 056 972
BATTERY ACID PARCEL (6 BOTTLES) - 25AH-30AHAlternative for position 21-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
