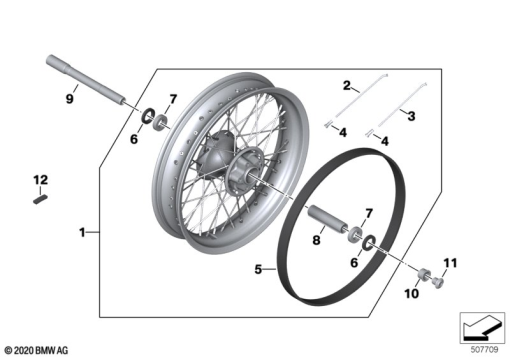

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 8 414 955 | SPOKE WHEEL, BLACK FRONT - 3.0X16 | - | |
| 2 | 36 31 8 414 967 | SPOKE, INSIDE - L=146MM (to 09/22) | - | |
36 31 1 691 842 | SPOKE, INSIDE - L=146MMAlternative for position 2 | - | ||
| 3 | 36 31 8 414 966 | SPOKE, OUTSIDE - L=138,6MM (to 09/22) | - | |
36 31 1 691 840 | SPOKE, OUTSIDE - L=138,6MMAlternative for position 3 | - | ||
| 4 | 36 31 9 444 615 | NIPPLE - M4,5 | - | |
| 5 | 36 31 8 414 974 | TIRE FLAP - 3.0X16 | - | |
| 6 | 36 31 8 561 711 | SHAFT SEAL - AS30X47X7 | - | |
| 7 | 36 31 7 109 089 | GROOVED BALL BEARING 25X47 - 25X47 | - | |
| 8 | 36 31 8 414 978 | SPACER BUSH | - | |
| 9 | 36 31 8 414 980 | QUICK-RELEASE AXLE | - | |
36 31 7 925 187 | QUICK-RELEASE AXLEAlternative for position 9 | - | ||
| 10 | 36 31 8 414 976 | SPACER BUSH | - | |
| 11 | 36 31 8 561 528 | SCREW - M20X1,5 | - | |
| 12 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 12 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 12 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 12 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 12 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 12 | - |
