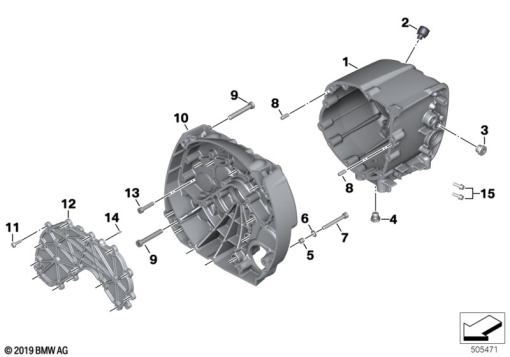

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 00 1 539 537 | TRANSMISSION HOUSING, SILVER | - | |
23 00 1 539 538 | TRANSMISSION HOUSING, SILVERAlternative for position 1 | - | ||
| 2 | 23 00 7 693 739 | BREATHER | - | |
33 74 8 864 458 | BREATHERAlternative for position 2 | - | ||
| 3 | 23 00 7 721 088 | SCREW PLUG, MAGNETIC - M18X1,5 | - | |
| 4 | 23005B42036 | SCREW PLUG WITH O-RING | - | |
| 5 | 11 12 1 726 238 | DOWEL - D=10,5MM | - | |
| 6 | 07 11 9 907 030 | WASHER - 8,4X16X1,6-ZNNV | - | |
| 7 | 07 12 9 908 560 | SCREW - M8X65-8.8 ZNNIV | - | |
| 8 | 07 11 9 909 754 | DOWEL PIN - M6X20-A1 | - | |
| 9 | 07 12 9 905 074 | ISA SCREW - M10X65 | - | |
| 10 | 23 00 9 444 836 | SILVER HOUSING COVER - SILVER | - | |
23 00 9 444 838 | SILVER HOUSING COVER - SILVERAlternative for position 10 | - | ||
| 11 | 07 11 9 907 517 | COUNTERSUNK SCREW - M6X20-8.8-ZNNIV | - | |
| 12 | 23 00 8 413 982 | COVER | - | |
| 13 | 07 12 9 904 068 | ISA SCREW - M8X35-8.8-ZNS3 | - | |
| 14 | 07 11 9 942 511 | DOWEL PIN - 4X10 | - | |
| 15 | 07 12 9 905 558 | INTERNAL TORX SCREW WITH WASHER - M6X25-U1-8.8 | - |
