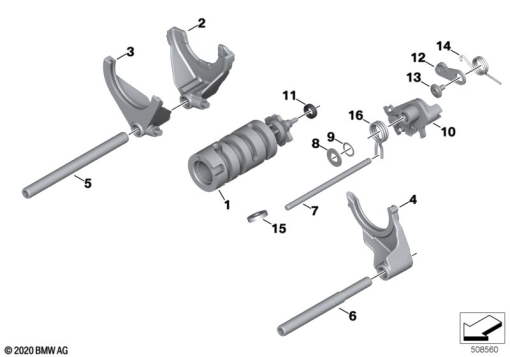

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 00 8 414 051 | SHIFTING ROLL | - | |
| 2 | 23 00 8 393 842 | SHIFTING FORK 2ND AND 3RD GEAR | - | |
| 3 | 23 00 8 393 844 | SHIFT FORK FOR 1ST AND 6TH GEARS | - | |
| 4 | 23 00 8 393 846 | SHIFTING FORK 4TH AND 5TH GEAR | - | |
| 5 | 23 31 7 709 816 | SHIFTING RAIL - 167X13,8 | - | |
| 6 | 23 31 7 681 444 | SHIFTING RAIL - 8X14X148 | - | |
| 7 | 23 00 8 414 007 | DOWEL PIN | - | |
| 8 | 23 31 7 683 470 | SUPPORT | - | |
| 9 | 23 00 7 681 445 | WAVE WASHER - 13,49 / 20,19 | - | |
| 10 | 23 00 7 724 631 | SHIFTING ARM | - | |
| 11 | 23 12 2 330 141 | SHAFT SEAL - 10X18X6 | - | |
| - | Shaft seal 10.18.6. | Shaft seal 10.18.6. | - | |
| 12 | 23 00 8 414 199 | LOCKING LEVER | - | |
| 13 | 23 00 7 683 299 | COUNTERSUNK SCREW | - | |
| 14 | 23 00 7 709 773 | RETAINER SPRING | - | |
| 15 | 23 00 7 681 329 | RING MAGNET - 10X25X5 | - | |
| 16 | 23 00 8 531 103 | RETAINER SPRING | - |
