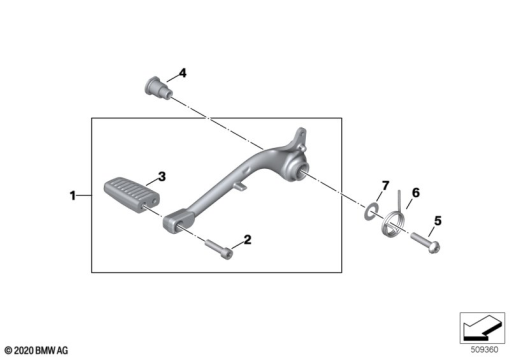

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35 21 8 392 702 | FOOTBRAKE LEVER NARROW | - | |
35 21 8 392 702 | FOOTBRAKE LEVER NARROW (from 04/20)Alternative for position 1 | - | ||
| 2 | 07 12 9 907 080 | ISA SCREW - M8X30-8.8-ZNNIV | - | |
| 3 | 35 21 1 540 896 | STEP PIECE - CHROME (to 04/21) | - | |
35 21 8 392 709 | FOOT PLATE NARROW - CHROMEAlternative for position 3 | - | ||
| 4 | 23 41 8 533 708 | COLLAR BUSH | - | |
| 5 | 07 12 9 907 381 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNNIV | - | |
| 6 | 35 21 9 444 609 | RETAINER SPRING | - | |
| 7 | 07 14 7 701 307 | WASHER - 13,5X24X0,5 | - |
