Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35 21 9 899 341 | BRAKE PEDAL - BLACK | - | |
35 21 9 442 995 | BRAKE PEDAL - CHROMEAlternative for position 1 | - | ||
| 2 | 07 12 9 907 380 | ISA SCREW - M8X35-8.8-ZNNIV | - | |
| 3 | 07 11 9 905 732 | WASHER | - | |
| 4 | 23 41 9 467 868 | 23 41 9 467 868 | - | |
| 5 | 23 41 9 467 875 | RUBBER | - | |
| 6 | 23 41 8 533 708 | COLLAR BUSH | - | |
| 7 | 07 12 9 907 381 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNNIV | - | |
| 8 | 35 21 9 444 609 | RETAINER SPRING | - | |
| 10 | 07 14 7 701 307 | WASHER - 13,5X24X0,5 | - |

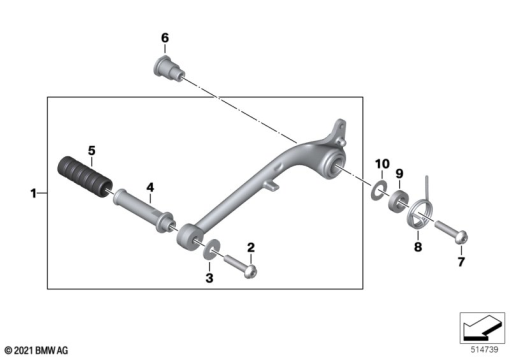

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
