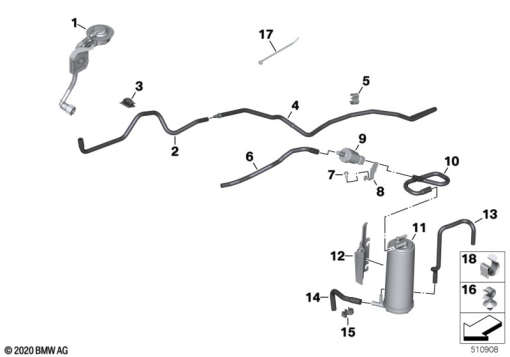

Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 11 8 414 880 | FUEL TANK BREATHER VALVE | - | |
| 2 | 16 13 8 413 788 | HOSE | - | |
16135B40E23 | HOSE LINEAlternative for position 2 | - | ||
| 3 | 61 13 7 849 481 | CLIP - M PDC | - | |
| 4 | 16 13 9 457 151 | HOSE | - | |
16135B40E24 | HOSE LINEAlternative for position 4 | - | ||
| 5 | 16 13 7 718 632 | HOSE CLAMP, DOUBLE | - | |
| 6 | 16 13 9 829 248 | HOSE | - | |
16135B526C4 | HOSEAlternative for position 6 | - | ||
| 7 | 07 12 9 908 078 | SCREW - TS 5X12 | - | |
| 8 | 16 13 7 924 233 | BRACKET VENTILATION VALVE (from 04/21) | - | |
| 9 | 16 13 8 567 224 | FUEL TANK BREATHER VALVE | - | |
| 10 | 16 13 7 924 234 | HOSE | - | |
16135B40E25 | HOSEAlternative for position 10 | - | ||
| 11 | 16 13 7 727 387 | ACTIVATED CHARCOAL FILTER | - | |
| 12 | 16 13 9 467 668 | CARRIER | - | |
| 13 | 16 13 7 924 236 | HOSE | - | |
| 14 | 16 13 7 924 235 | HOSE | - | |
| 15 | 11 66 8 608 169 | TUBING SUPPORT | - | |
| 16 | 11 53 8 571 359 | BRACKET FOR COOLANT LINE | - | |
| 18 | 61 27 8 662 930 | HOLDER (from 04/21) | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
