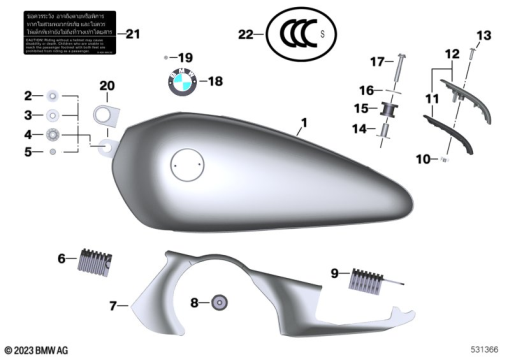

Parts List (30)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 11 9 480 901 | FUEL TANK | - | |
46 63 7 105 022 | FUEL TANK - GALAXYDUSTTITSIAlternative for position 1 | - | ||
16 11 7 925 198 | FUEL TANK - MARSROT MET.Alternative for position 1 | - | ||
46 63 7 105 021 | FUEL TANK - MINERALWHITEAlternative for position 1 | - | ||
16 11 7 925 199 | FUEL TANK - MANHATTEN MET.Alternative for position 1 | - | ||
16 11 1 542 516 | FUEL TANK - BLACKSTORMAlternative for position 1 | - | ||
46815A7AD44 | FUEL TANK - DEKOR BS MET.Alternative for position 1 | - | ||
16 11 1 542 523 | FUEL TANK - BLACKST./LIN.Alternative for position 1 | - | ||
16 11 8 101 180 | FUEL TANK - MANHATTEN/LIN.Alternative for position 1 | - | ||
16 11 7 106 000 | FUEL TANK - MARSOT/LIN.Alternative for position 1 | - | ||
16115A6A838 | KRAFTSTOFFBEHÄLTER - MARSRED /LIN-SWAlternative for position 1 | - | ||
| 2 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | - | |
| 3 | 46 63 1 451 277 | RUBBER GROMMET | - | |
| 4 | 16 11 9 898 420 | REINFORCEMENT | - | |
| 5 | 07 11 9 907 160 | COUNTERSUNK SCREW - M6X25-8.8-ZNNIV | - | |
| 6 | 16 11 9 444 671 | SUPPORT, TANK, FRONT | - | |
| 7 | 16 11 9 445 231 | SET: SET OF HEAT SHIELD SHEETS | - | |
| 8 | 16 11 9 457 013 | SUPPORT, FUEL TANK, CENTER | - | |
| 9 | 16 11 9 457 012 | SUPPORT, TANK, REAR | - | |
| 10 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 11 | 16 11 9 480 676 | COVER | - | |
| 12 | 16 11 1 543 044 | COVER | - | |
| 13 | 46 63 8 550 994 | BODY SCREW WITHOUT SHOULDER - M5X20 MK | - | |
| 14 | 16 11 9 444 670 | BUSH | - | |
| 15 | 16 11 9 444 669 | RUBBER INSULATOR, TANK BRACKET | - | |
| 16 | 16 11 7 698 872 | WASHER - D=32 | - | |
| 17 | 07 12 9 907 378 | ISA SCREW - M8X45-8.8-ZNNIV | - | |
| 18 | 16 11 9 480 679 | BADGE - D60 | - | |
| 19 | 07 14 9 480 705 | CSK.FILLISTER HEAD SREW - M4X12 MK | - | |
| 20 | 16 11 7 105 056 | COVER | - |
