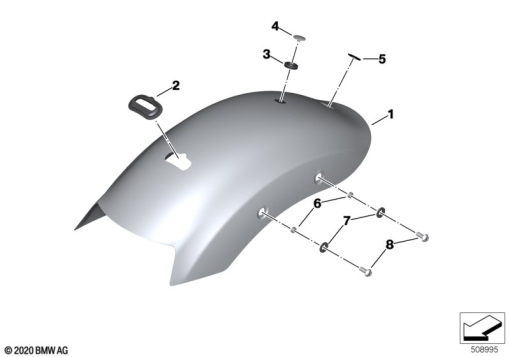

Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 9 445 134 | REAR WHEEL COVER - ROHTEIL / BLANK | - | |
46 62 1 542 518 | REAR WHEEL COVER - BLACKSTORM MET.Alternative for position 1 | - | ||
46 62 1 542 524 | REAR WHEEL COVER - BLACKSTORM MET.Alternative for position 1 | - | ||
| 2 | 46 62 9 444 672 | GASKET | - | |
| 3 | 46 62 9 444 673 | GASKET | - | |
| 5 | 51 14 2 328 447 | BADGE - D=27MM | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
