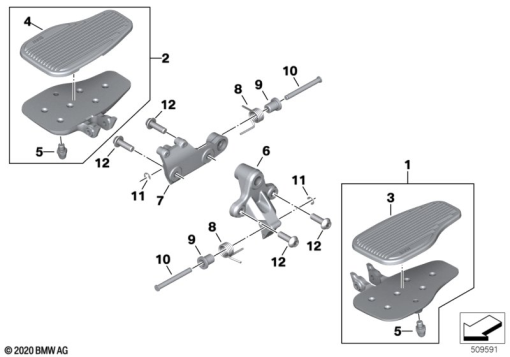

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 8 392 695 | RUNNING BOARD LEFT FRONT - BLACK | - | |
46 71 8 392 693 | RUNNING BOARD LEFT FRONT - CHROMEAlternative for position 1 | - | ||
| 2 | 46 71 8 392 696 | RUNNING BOARD RIGHT FRONT - BLACK | - | |
46 71 8 392 694 | RUNNING BOARD RIGHT FRONT - CHROMEAlternative for position 2 | - | ||
| 3 | 46 71 1 540 777 | DISTANCE RUBBER, LEFT | - | |
| 4 | 46 71 1 540 778 | DISTANCE RUBBER, RIGHT | - | |
| 5 | 46 71 8 392 723 | STOPPER - M10 | - | |
| 6 | 46 71 8 392 697 | MOUNT FOR RUNNING BOARD, LEFT | - | |
| 7 | 46 71 8 392 698 | MOUNT FOR RUNNING BOARD, RIGHT | - | |
| 8 | 46 71 1 540 781 | RETURN SPRING | - | |
| 9 | 46 71 8 392 724 | BUSH | - | |
| 10 | 46 71 8 392 727 | 46 71 8 392 727 | 2 | |
| 11 | 07 11 9 909 941 | CIRCLIP | - | |
| 12 | 07 12 9 908 527 | FILLISTER-HEAD SCREW - M10X30-10.9-MK | - |
