R18 Classic (K34) | Engine

PISTON WITH RINGS AND WRISTPIN

Diagram #11_8396 | 5 parts

100%

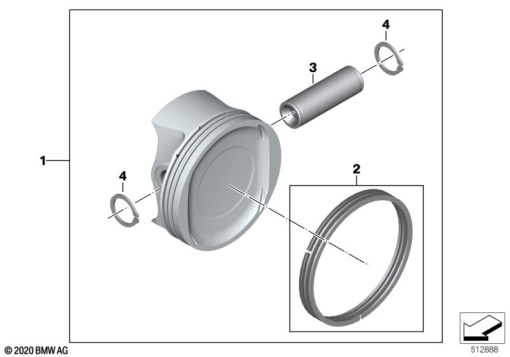

R18 Classic (K34) PISTON WITH RINGS AND WRISTPIN exploded view parts diagram

Parts List (5)

#Part NumberDescriptionQty
1
11 11 7 925 331
PISTON (to 04/22)1
1
11 11 7 105 877
PISTON1
2
11 25 7 105 996
SET: SET PISTON RINGS (from 04/22)1
3
11 25 8 409 684
GUDGEON PIN1
4
11 25 1 335 476
LOCK RING - A22X1.751
