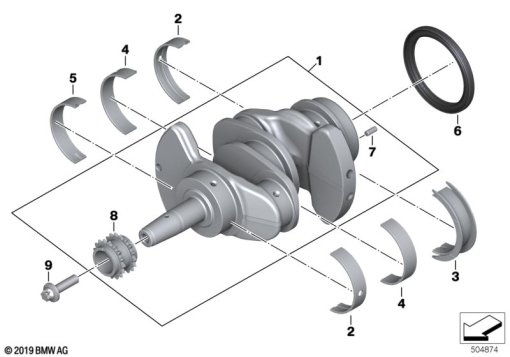

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 21 8 409 716 | CRANKSHAFT | - | |
| 2 | 11 21 8 409 710 | MAIN BEARING SHELL / YELLOW - KL 1 | - | |
11 21 8 409 717 | MAIN BEARING SHELL / GREEN - KL 2Alternative for position 2 | - | ||
11 21 9 444 130 | MAIN BEARING SHELL / VIOLET - KL 3Alternative for position 2 | - | ||
| 3 | 11 21 8 414 435 | GUIDE-BEARING SHELL YELLOW - KL 1 | - | |
11 21 8 414 436 | GUIDE-BEARING SHELL GREEN - KL 2Alternative for position 3 | - | ||
11 21 9 444 133 | GUIDE BEARING SHELL VIOLET - KL 3Alternative for position 3 | - | ||
| 4 | 11 21 8 409 712 | MAIN BEARING SHELL / YELLOW - KL 1 | - | |
11 21 8 409 719 | MAIN BEARING SHELL / GREEN - KL 2Alternative for position 4 | - | ||
11 21 9 444 132 | MAIN BEARING SHELL / VIOLET - KL 3Alternative for position 4 | - | ||
| 5 | 11 21 8 409 711 | MAIN BEARING SHELL / YELLOW - KL 1 | - | |
11 21 8 409 718 | MAIN BEARING SHELL / GREEN - KL 2Alternative for position 5 | - | ||
11 21 9 444 131 | MAIN BEARING SHELL / VIOLET - KL 3Alternative for position 5 | - | ||
| 6 | 11 11 8 409 787 | SHAFT SEAL | - | |
07 14 1 030 295 | SHAFT SEALAlternative for position 6 | - | ||
| 7 | 07 11 9 942 074 | DOWEL PIN - 6M6X14 | - | |
| 8 | 11 21 8 409 713 | SPROCKET | - | |
| 9 | 07 11 9 909 662 | SCREW - M10X1X35-10.9 | - |
