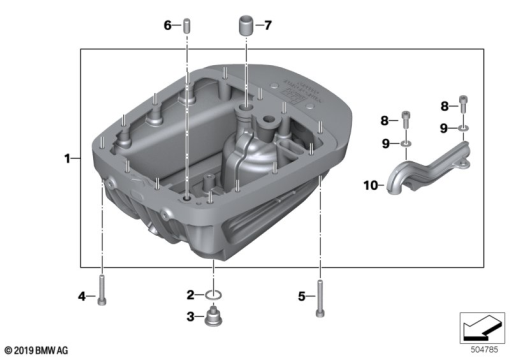

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 13 9 829 586 | OIL PAN - SILVER | 1 | |
| 2 | 07 11 9 963 252 | GASKET RING - A16X20-AL | 1 | |
| 3 | 11 13 7 720 999 | SCREW PLUG, MAGNETIC - M16X1,5-ZNNIV (to 04/23) | 1 | |
| 3 | 07145A71AF9 | SCREW PLUG. MAGNET - M16X1,5 | 1 | |
| 4 | 07 12 9 905 944 | SCREW - M6X35 | 1 | |
| 5 | 07 12 9 909 584 | SCREW - M6X45-8.8-ZNNIV | 1 | |
| 6 | 07 11 9 942 527 | DOWEL PIN - 8X18 | 1 | |
| 7 | 11 13 8 409 904 | BUSH - 17X20 | 1 | |
| 8 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV | 1 | |
| 9 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | 1 | |
| 10 | 11 13 1 541 009 | RETURN PIPE | 1 |
