R18 Classic (K34) | Clutch

CLUTCH WITH CLUTCH PLATE

Diagram #21_0350 | 5 parts

100%

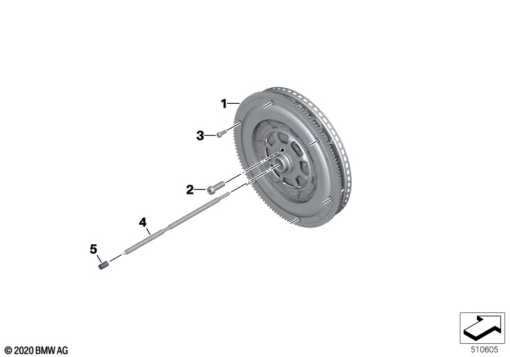

R18 Classic (K34) CLUTCH WITH CLUTCH PLATE exploded view parts diagram

Parts List (5)

#Part NumberDescriptionQty
1
21 21 8 414 017
CLUTCH1
2
07 11 9 909 654
SCREW - M10X1X30-10.91
3
07 11 9 909 631
SCREW - M6X16-10.9-MKL1
4
21 52 8 414 022
21 52 8 414 0221
5
23 21 1 230 440
FELTRING1
