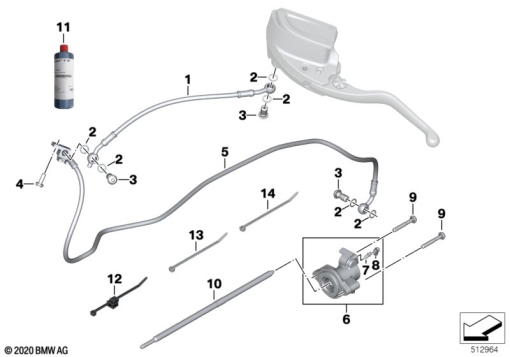

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 9 457 253 | CLUTCH LINE UPPER | - | |
| 2 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 3 | 34 32 1 599 229 | HOLLOW BOLT - M10X1 | - | |
| 4 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | - | |
| 5 | 32 72 9 457 254 | LOWER CLUTCH LINE | - | |
| 6 | 21 52 9 457 257 | CLUTCH SLAVE CYLINDER | - | |
| 7 | 32 72 7 695 221 | VENT SCREW - M5X1 | - | |
| 8 | 32 72 7 695 222 | DUST CAP | - | |
| 9 | 07 12 9 907 398 | FILLISTER-HEAD SCREW - M6X40-8.8-ZNNIV | - | |
| 10 | 21 52 8 414 022 | 21 52 8 414 022 | - | |
| 11 | 21 52 2 455 540 | TRANSMISSION OIL HYSPIN V10 - 250 ML | - | |
| 12 | 61 13 6 914 992 | CABLE STRAP WITH BRACKET - Ø=7,9 / L=200 | - | |
| 13 | 61 13 8 383 722 | CABLE TIE - L=200MM/B=4,6MM | - | |
| 14 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - |
