R18 Classic (K34) | Brakes

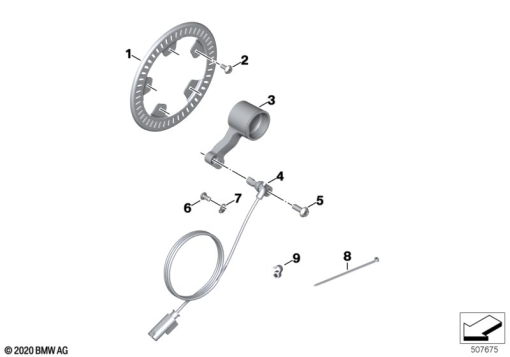

ROTATIONAL-SPEED SENSOR, REAR
Diagram #34_2986 | 13 parts | 2 available in shop
100%
Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34525A8BF25 | SENSOR RING, FRONT/REAR - Z=48 | 1 | |
| – | 07 12 9 908 527 | FILLISTER-HEAD SCREW - M10X30-10.9-MK | 1 | |
| 1 | 34 52 8 406 859 | SENSOR RING - Z=48 (to 08/24) | 1 | |
| – | 07 12 9 909 394 | FILLISTER-HEAD SCREW - M5X10 8.8 MK (to 08/24) | 1 | |
| 2 | 07 12 9 909 394 | FILLISTER-HEAD SCREW - M5X10 8.8 MK | 1 | |
| 2 | 07 12 9 908 527 | FILLISTER-HEAD SCREW - M10X30-10.9-MK | 1 | |
| 3 | 34 52 9 457 581 | BRACKET F.SENSOR | 1 | |
| 4 | 34 52 8 404 803 | WHEELSPEED SENSOR | 1 | |
| 5 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | 1 | |
| 6 | 36 31 7 678 083 | OVAL HEAD SCREW - M5X10-10.9 ZNS3 | 1 | |
| 7 | 34 52 8 414 775 | CABLE CLAMP | 1 | |
| 8 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 | |
| 9 | 34 52 7 664 098 | CABLE CLAMP - D=6/4,5MM | 1 |
