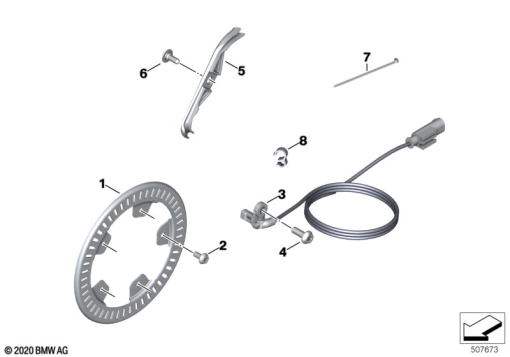

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34525A8BF25 | SENSOR RING, FRONT/REAR - Z=48 | - | |
| - | 07 12 9 908 527 | FILLISTER-HEAD SCREW - M10X30-10.9-MK | - | |
| 1 | 34 52 8 406 859 | SENSOR RING - Z=48 (to 08/24) | - | |
| - | 07 12 9 909 394 | FILLISTER-HEAD SCREW - M5X10 8.8 MK (to 08/24) | - | |
| 2 | 07 12 9 909 394 | FILLISTER-HEAD SCREW - M5X10 8.8 MK | - | |
07 12 9 908 527 | FILLISTER-HEAD SCREW - M10X30-10.9-MKAlternative for position 2 | - | ||
| 3 | 34 52 8 404 803 | WHEELSPEED SENSOR | - | |
| 4 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | - | |
| 5 | 34 52 9 443 453 | CABLE GUIDE | - | |
| 6 | 46 63 8 521 653 | BODY SCREW WITH SHOULDER - M5X14,5-A2-70 | - | |
| 7 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| 8 | 34 52 7 664 098 | CABLE CLAMP - D=6/4,5MM | - |
